| Technical data | EL2722, ES2722 |
|---|---|
| Connection technology | triac output, 2-wire |
| Number of outputs | 2 x make contacts, mutually locked |
| Rated load voltage | 12…230 V AC |
| Load type | ohmic, inductive |
| Distributed clocks | – |
| Max. output current | 1 A (leakage current: typ. 0.8 mA, max. 1.5 mA) per channel |
| Switching times | in zero crossing, 0.1…10 ms |
| Rotating field frequency | 47…63 Hz |
| Surge voltage protection | > 275 V |
| Peak current | 40 A (16 ms), 1.5 A (30 s) |
| Standby current | 0.6 mA |
| Leakage current (OFF state) | typ. 0.8 mA, max. 1.5 mA |
| Switch-on time | 0.1…10 ms, zero crossing |
| Switch-off time | T/2 |
| Residual voltage | max. 1.5 V (60 mA…1 A), 150 ? (< 60 mA) |
| Current consumption E-bus | typ. 120 mA |
| Electrical isolation | 500 V (E-bus/field voltage), 3750 V AC (1 min.) |
| Current consumption power contacts | – |
| Bit width in the process image | 2 outputs |
| Configuration | no address or configuration setting |
| Special features | suitable for conventional blind motors |
| Weight | approx. 55 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE |

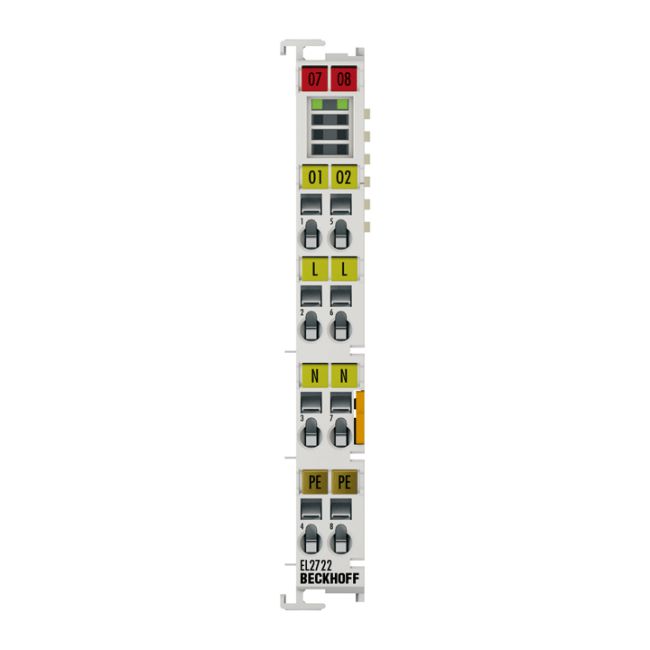

EL2722 | EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 1 A
SKU: EL2722
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
Thông tin bổ sung
| Thương hiệu | |
|---|---|
| Thời gian bảo hành | 1 Năm |
