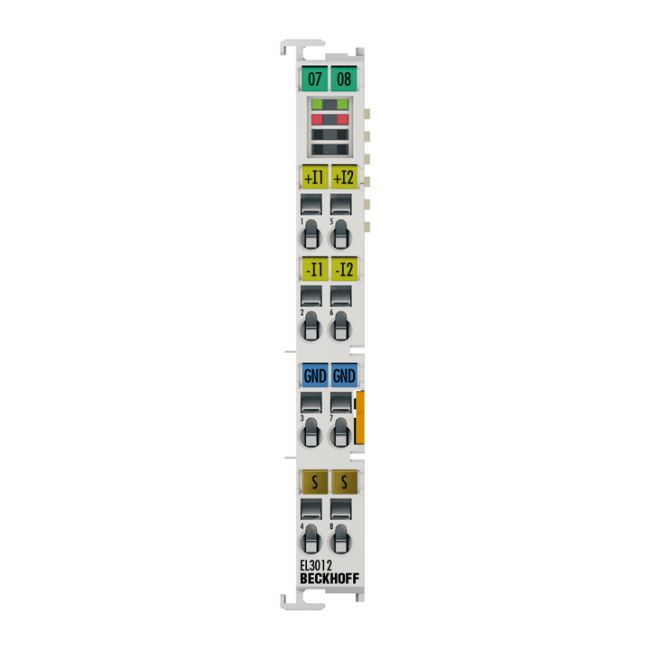

EL3012 | EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, differential

Technical data	EL3012, ES3012
Number of inputs	2 (differential)
Power supply	via the E-bus
Technology	differential input
Signal type	differential
Signal current	0…20 mA
Distributed clocks	–
Internal resistance	typ. 85 ? + diode voltage
Input filter limit frequency	1 kHz
Common-mode voltage UCM	max. 10 V
Conversion time	0.625 ms default setting, configurable, multiplex
Resolution	12 bit (16 bit presentation incl. sign)
Measuring error	< ±0.3 % (relative to full scale value)
Surge voltage resistance	35 V DC
Electrical isolation	500 V (E-bus/signal voltage)
Current consumption power contacts	–
Current consumption E-bus	typ. 130 mA
Bit width in the process image	inputs: 8 byte
Special features	activatable FIR/IIR filters, limit value monitoring
Weight	approx. 55 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP 20/variable
Pluggable wiring	for all ESxxxx terminals
Approvals/markings	CE, UL, ATEX
Ex marking	II 3 G Ex nA IIC T4 Gc
