| Technical data | EL7332, ES7332 |
|---|---|
| Technology | compact drive technology |
| Connection method | direct motor connection |
| Number of inputs | 1 x end position per channel |
| Load type | DC brush motor, inductive |
| Number of channels | 2 |
| Number of outputs | 1 x DC motor per channel |
| Supply voltage electronics | 24 V DC (via power contacts) |
| Supply voltage power | 24 V DC (internally via power contacts) |
| Output current | max. 1 A per channel |
| Performance increase | yes, through ZB8610 fan cartridge |
| Output current with ZB8610 | max. 3.0 A per channel |
| PWM clock frequency | 32 kHz with 180° phase shift each |
| Duty factor | 0…100 % (voltage-controlled) |
| Resolution | max. 10 bit current, 16 bit speed |
| Current consumption power contacts | typ. 40 mA + motor current |
| Current consumption E-bus | typ. 140 mA |
| Distributed clocks | yes |
| Special features | travel distance control |
| Electrical isolation | 500 V (E-bus/field potential) |
| Weight | approx. 50 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. class/installation pos. | IP 20/see documentation |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL |

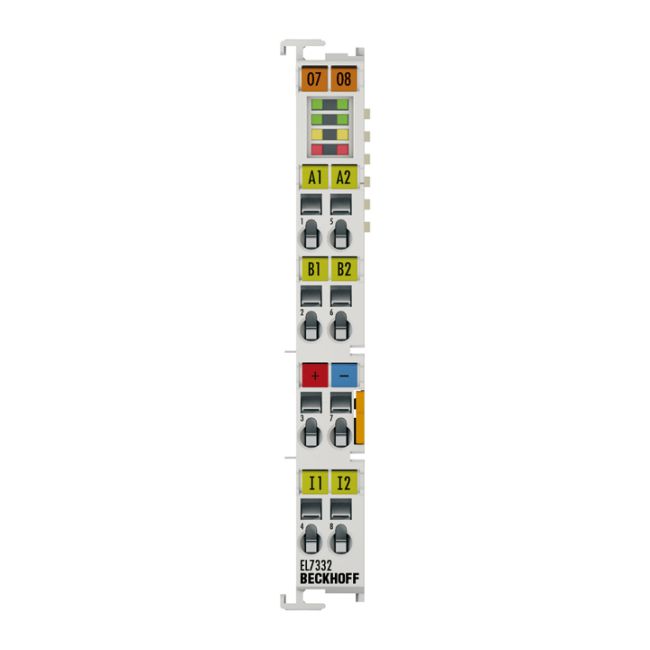

EL7332 | EtherCAT Terminal, 2-channel motion interface, DC motor, 24 V DC, 1 A
SKU: EL7332
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
